To develop a range of fly leads and connectors that provides optimal performance in the home environment and exceeds Class A++ screening effectiveness (105db) over the whole cable frequency range.
Our solution

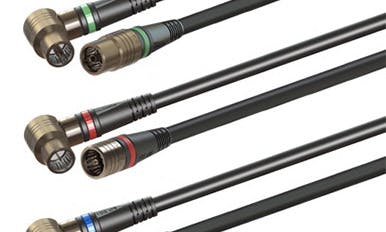

In order to ensure adequate protection from LTE/4G and other services interfering to cable signal within the home, Class A++ screening effectiveness is required. To meet this requirement, Technetix has developed a comprehensive range of Class A++ fly leads incorporating right angled Technetix F-Safe and IEC Safe Class A++ connectors.
The Technetix class A++ fly leads and connectors range has been designed to provide optimal performance in a home environment.
Technetix pays close attention to detail in all aspects of development, from specification of the materials, construction and performance characteristics. This thorough approach enhances the end user experience, from the ease of installation to the long-life expectancy of the product. The precise dimensions used, combined with the outstanding resilience of the connectors and inner pins, delivers a very reliable connection. The connectors are tightly secured and moulded to the cables to ensure good pull and strain relief.
The cables’ inner conductors are soldered to their inner pins to maintain excellent electrical and mechanical performance. Technetix fly leads built with Technetix F-Safe and IEC Safe Class A++ connectors, exhibit low insertion loss, high return loss and exceeds Class A++ screening effectiveness over the whole frequency range.
The new right angled connector is more convenient to use, especially where the connection point is difficult to access when a television (TV) is fitted to the wall, for example. Many people prefer to fit a TV to the wall in their homes, but this comes with challenges. The new right angled fly lead is designed so that you do not have to bend the cable to make a connection, reducing the risk of EMC interference caused by a sharply bent cable.
The TV is just one example where this product is beneficial, these benefits can apply to all equipment.
Advantages:
- No risk of deformation or destruction of the cable due to exceeding min bending radius
- No risk of deformation or breaking the connection port
- Simple/easy access in tight spaces
- Low insertion loss and high return loss
- Exceeds Cenelec A++ screening effectiveness (105db) over the whole cable frequency range
