AQ6373E Visible Wavelength Optical Spectrum Analyzer 350 - 1200 nm

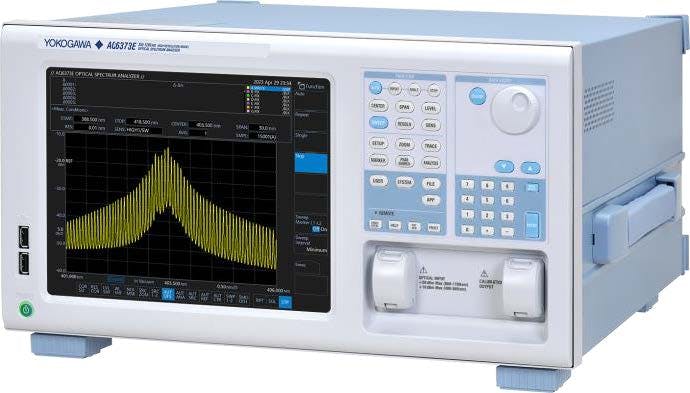

AQ6373E Visible Wavelength Optical Spectrum Analyzer

The AQ6373E Visible Wavelength Optical Spectrum Analyzer from Yokogawa Test&Measurement provides high-speed, accurate analysis of the short wavelengths from 350 to 1200 nm.

With three available models to meet the demands of various applications, this versatile OSA accelerates the development and manufacturing of short wavelength lasers, passive devices, and LEDs, as well as equipment that use these devices for the biomedical, material processing, consumer product, and telecommunications markets.

AQ6373E Visible Wavelength Optical Spectrum Analyzer

• Three available models for short wavelength range applications: Standard, High Resolution, Limited
• Wavelength Range: 350 - 1200 nm (all models)
• Wavelength Resolution
  • Standard: 0.02 nm - 10 nm
  • High Resolution: 0.01 nm - 10 nm (0.01 nm from 350 - 600 nm)
  • Limited: 0.1 nm - 5 nm
• Wavelength Accuracy
  • Standard: ±0.05 nm (633 nm), ±0.2 nm (400 - 1100 nm)
  • High Resolution: ±0.05 nm (633 nm), ±0.2 nm (400 - 1100 nm)
  • Limited: ±0.05 nm (633 nm), ±0.2 nm (400 - 1100 nm)
• Close-In Dynamic Range
  • Standard: 60 dB (λ_PK ± 0.5 nm)
  • High Resolution: 60 dB (λ_PK ± 0.5 nm)
  • Limited: 45 dB (λ_PK ± 0.5 nm)
• Sensitivity
  • Standard: -80 dBm (500 - 1000 nm)
  • High Resolution: -80 dBm (500 - 1000 nm)
  • Limited: -70 dBm (500 - 1000 nm)
• Measurement Level Range
  • Standard: 100 dB (-80 - +20 dBm)
  • High Resolution: 100 dB (-80 - +20 dBm)
  • Limited: 90 dB (-70 - +20 dBm)
• Max Safe Input Power: +20 dBm (550 to 1100 nm) +10 dBm (400 to 550 nm) (total input power)
• Single-mode, multimode, and large-core fibers
• Built-in optical alignment source
• Wavelength calibration with an external reference source
• Various analysis functions including color analysis for VIS
