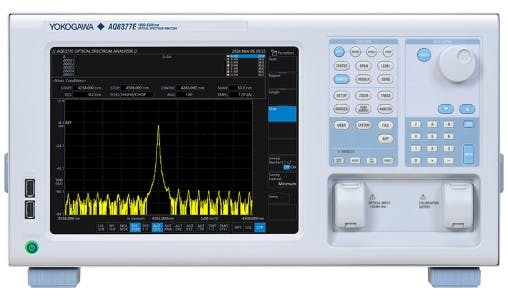

The AQ6377E is an optical spectrum analyzer, offering extended wavelength coverage into the MWIR region from 1900 - 5500 nm. In addition to the same excellent optical performance as the AQ6377, the AQ6377E has several improvements.
Key Features
Wavelength range: 1900 to 5500 nm
5 wavelength resolution settings: 0.2 to 5 nm Enables the user to choose the best value according to the device/system under test.
Wide measurement dynamic range: 73 dB Suitable to measure high power as well as low power sources used in different fields of application. Sensitivity: HIGH1-3 are only high dynamic mode.
Wavelength accuracy: ±0.5 nm Easily maintained due to the built-in Calibration Function and wavelength reference source.
Close-in dynamic range: 50 dB
Horizontal scale also in Wave Number (cm−1) In addition to the commonly used scales in wavelength (nm) and frequency (THz).
Equipped with a high-performance chopper
It is equipped with a high-performance chopper that operates automatically according to the setting sensitivity. This reduces the influence of infrared radiation within the measuring instrument and minimizes the impact of background noise during mid-infrared spectrum measurements.
Advanced pulsed light measurement mode
This mode enables the measurement of pulsed light with various pulse widths and repetition rates.
