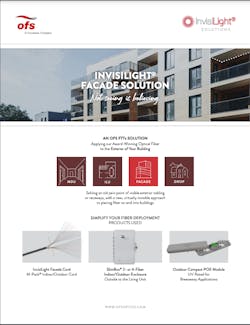

The InvisiLight Façade Solution is offered with a twelve or twenty four fiber count indoor/outdoor rated cable, which can be installed on the face of a building or tucked behind other outdoor structures such as rain water downspouts. The two cables have a 3.0mm and 3.8mm diameter respectively and can be factory pre-terminated or connectorized on site with a fusion splice or a mechanical connector.
During installation, the cables are connected to an outdoor building terminal that is usually installed at the base of a building. From the terminal, the cable can be installed vertically on the face of the building into the attic and be connected to a distribution terminal from which EZ-Bend® cables can be fished down into living units. Alternatively, the cable can be placed along the building facade using clips to pass each living unit with compact slack loops placed outside or inside the unit. From this point, the optical fiber can easily be extracted to connect to the other InvisiLight solutions to reach the Optical Network Terminal (ONT). OFS’ class-leading EZ-Bend fiber is used in the InvisiLight Façade cable and all InvisiLight products. With its 2.5 mm bend radius, this fiber easily handles the sharp corners typically encountered when conforming the cable neatly to the building.
